Home > products > Rackmount Storage Server > E9000 Blade Server 16 Slots 12U Blade Server

E9000 Blade Server 16 Slots 12U Blade Server

Product Details

Place of Origin: Beijing, China

Model Number: E9000

Payment & Shipping Terms

Price: $300.00/pieces >=1 pieces

Packaging Details: Original Carton

Supply Ability: 200 Piece/Pieces per Month

Get Best Price
Highlight:
Products Status:
Stock
Type:
Tower, Blade
Processor Type:
INTEL
Processor Main Frequency::
2.5Ghz
Form Factor:
12U
Fan Modules:
Provides 14 Hot-swappable Fan Modules In N+1 Redundancy Mode
Operating Temperature::
5°C To 40°C
Dimensions:
530 Mm * 442 Mm *840 Mm
Warranty:
1year
Port:
All Ports
Products Status:
Stock
Type:
Tower, Blade
Processor Type:
INTEL
Processor Main Frequency::
2.5Ghz
Form Factor:
12U
Fan Modules:
Provides 14 Hot-swappable Fan Modules In N+1 Redundancy Mode
Operating Temperature::
5°C To 40°C
Dimensions:
530 Mm * 442 Mm *840 Mm
Warranty:
1year
Port:
All Ports
E9000 Blade Server 16 Slots 12U Blade Server
Product Description

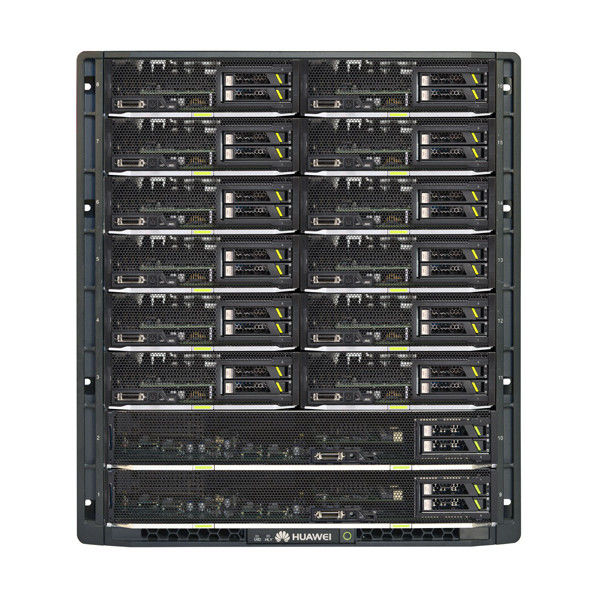

E9000 Converged Infrastructure Blade Server

The FusionServer E9000 converged-architecture blade server enables convergence of computing, storage, networking, and management.

It provides a powerful platform for high-end carrier or enterprise applications, and is ideal for data centers, virtualization, mission-critical services, and high-performance computing.

Provides 16 slots in a 12U chassis that includes redundant Power Supply Units (PSUs), heat-dissipation modules, management modules, and switch modules.

The Huawei E9000 server can be installed in a standard 19-inch rack at a depth of at least 1m. It is available with AC or DC power setups to suit data center requirements.

Huawei server with Intel® Xeon® processor.

Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.



Specification



Specifications

Form Factor

12U

Blade

16 half-width slots or 8 full-width slots

Supports flexible configurations of full-width and half-width nodes

Switch Modules

4 slots for Huawei CX series switch modules provide a midplane switching capability of 15.6 Tbit/s

CX110 GE switch module: 12 x GE + 4 x 10 GE uplink, 32 x GE downlink

CX111 GE switch module: 12 x GE + 4 x 10 GE uplink, 32 x GE downlink

CX116 GE pass-through module: 32 x GE uplink, 32 x GE downlink

CX210 8G FC switch module: 8 x 8G FC uplink, 16 x 8G FC downlink

CX220 16G FC Switch Module: 8 x 16G FC uplink, 16 x 16G FC downlink

CX310 10 GE switch module: 16 x 10 GE uplink, 32 x 10 GE downlink

CX311 10 GE/FCoE converged switch module: 16 x 10 GE + 8 x 8G FC uplink, 32 x 10 GE downlink

CX317 10 GE pass through module: 32 x 10 GE uplink, 32 x 10 GE downlink

CX318 10 GE pass through module: 32 x 10 GE uplink, 32 x 10 GE downlink

CX611 InfiniBand switch module (QDR 40 Gbit/s, FDR 56 Gbit/s): 18 x QDR/FDR uplink, 16 x QDR/FDR downlink

CX710 40 GE switch module: 8 x 40 GE uplink, 16 x 40 GE downlink

CX912 multi-plane switch module; supports FC ports: 16 x 10 GE + 8 x 8G FC uplink, 32 x 10 GE + 16 x 8G FC downlink

CX915 multi-plane switch module: 4 x 10 GE + 12 x GE + 8 x 8G FC uplink, 32 x GE + 16 x 8G FC downlink

PSU

AC/DC PSU: maximum six 3,000W/2,000W AC or six 2,500W DC hot-swappable PSUs in N+N or N+M redundancy mode

Fan Modules

Provides 14 hot-swappable fan modules in N+1 redundancy mode

Management

  • Uses HMMs in 1+1 redundancy mode, supports standard management interfaces, such as SNMP and IPMI, manages computing and switching devices in a unified manner, and provides comprehensive management functions, such as a GUI, remote KVM, virtual media, SOL, remote control, hardware monitoring, intelligent power supply, and historical power consumption
  • Provides value-added management features, such as multi-frame cascading management, graphic network configuration, and stateless computing

Power Supply

110V/220V AC or –48V DC

Operating

Temperature

5°C to 40°C

Dimensions

Height: 530 mm (20.87 in.)

Width: 442 mm (17.40 in.)

Depth: 840 mm (33.07 in.)

Detail Emages

 E9000 Blade Server 16 Slots 12U Blade Server 0E9000 Blade Server 16 Slots 12U Blade Server 1

Certifications

E9000 Blade Server 16 Slots 12U Blade Server 2

Beijing Guangtian Runze Technology Co., Ltd. was established in March 2012, with a registered capital of 20 million yuan. Mainly engaged in the sale of the full range of DELL products and after-sales service, after years of continuous efforts the company has developed into, with more than 100 channel sales and after-sales service personnel, the channel throughout North China and the surrounding markets. Subsequently, the company acted as an agent for Lenovo and Wave, Huawei, Super Fusion, H3C, HPE and other
brands to further broaden the marketing channels and increase the competitiveness of the market, the company after more than a decade of efforts to develop, has accumulated a wealth of management experience and market development capabilities, the establishment of a perfect sales channel. The product line operated by the rich, covering a wide range, involving desktop computers, notebook computers, servers, network products, storage products, software, peripherals and hundreds of other kinds. Over the years,we also have provided a variety of information technology solutions for government agencies, education,enterprises, finance, post and telecommunications, the military, medical and many other industries, in line with the customer-centric, customer-first core philosophy, to create customized solutions for customers. We have accumulated rich industry experience in demand analysis, technical proof, equipment selection, network implementation, quality assurance, operation and maintenance, service support and other aspects, and is well received by customers, and is determined to build the enterprise into an excellent IT service provider in China.


E9000 Blade Server 16 Slots 12U Blade Server 3

The cooperation unit

E9000 Blade Server 16 Slots 12U Blade Server 4

Product packaging

E9000 Blade Server 16 Slots 12U Blade Server 5

Logistics and transportation

E9000 Blade Server 16 Slots 12U Blade Server 6

Certifications

E9000 Blade Server 16 Slots 12U Blade Server 7
