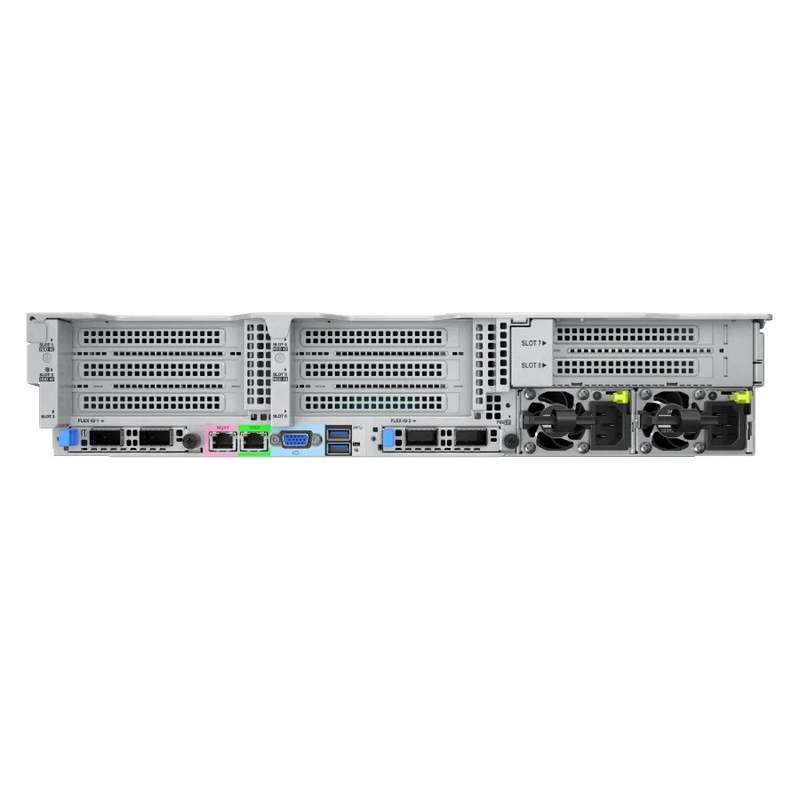

FusionServer 2288H V7 2U Rack Server with Intel Xeon Gold 5412U

Name: FusionServer 2288H V7 2U Rack Server with Intel Xeon Gold 5412U
Brand: Beijing Guangtian Runze Technology Co., Ltd.
Price: 6.00 USD
Availability: InStock

Product Details

Payment & Shipping Terms

Minimum Order Quantity: 2 pieces

Price: CN¥11,055.69/pieces >=2 pieces

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Huawei FusionServer 2288H V7 rack server, Intel Xeon Gold 5412U server, 2U Huawei GPU server


Private Mold:	NO	Products Status:	Stock
Type:	Rack	Processor Main Frequency:	2.2GHz
Processor Type:	Intel Xeon	Brand Name:	Huaweii
Model Number:	2288H V7	Place Of Origin:	Beijing, China
Model NO.:	2288H V7 Server	Chassis Type:	Rack (2U)
Processor Type:	Intel Xeon Scalable	Memory:	32 X DDR5 DIMMs, With Up To 4800 MT/s Speed.
Form Factor:	2U Rack Server	GPU Card:	4 X Dual-width Or 14 X Single-width GPU Cards
Smart Acceleration Frequency:	3.6GHz	Network Ports:	LOM: 2 X 10 GE + 2 X GE Ports
Size::	861mmx447mmx74.8mm 30kg	Origin:	China

Private Mold:	NO
Products Status:	Stock
Type:	Rack
Processor Main Frequency:	2.2GHz
Processor Type:	Intel Xeon
Brand Name:	Huaweii
Model Number:	2288H V7
Place Of Origin:	Beijing, China
Model NO.:	2288H V7 Server
Chassis Type:	Rack (2U)
Processor Type:	Intel Xeon Scalable
Memory:	32 X DDR5 DIMMs, With Up To 4800 MT/s Speed.
Form Factor:	2U Rack Server
GPU Card:	4 X Dual-width Or 14 X Single-width GPU Cards
Smart Acceleration Frequency:	3.6GHz
Network Ports:	LOM: 2 X 10 GE + 2 X GE Ports
Size::	861mmx447mmx74.8mm 30kg
Origin:	China

FusionServer 2288H V7 2U Rack Server with Intel Xeon Gold 5412U

Product Description

Specification

Model	FusionServer 2288H V7
Form Factor	2U, 2-socket rack server
Processors	1 or 2 x 4th Gen Intel® Xeon® Scalable processors (Sapphire Rapids) with TDP up to 350 W per processor
Chipset	Emmitsburg PCH
Memory	32 x DDR5 DIMMs, with up to 4800 MT/s speed. Supports memory expansion via CXL with up to 16 x DDR5 or DDR4 DIMM slots; up to 48 x DIMM slots*
Local Storage	Hot-swappable drives with the following configuration options are supported: • 8 to 35 x 2.5ʺ SAS/SATA/SSD drives • 12 to 20 x 3.5ʺ SAS/SATA drives • 4/8/16/24 x NVMe SSDs • 36 x E1.S SSDs • 48 x E3.S SSDs* • Up to 45 x 2.5ʺ drives, or 34 x full NVMe SSDs • 2 x M.2 SSDs
RAID	RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
Network	Expansion capability of multiple types of networks OCP 3.0 NICs are supported. Both two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap is supported
PCIe Expansion	Up to 19 x PCIe slots: 2 x FlexIO slots dedicated for OCP 3.0 NICs and 17 x standard PCIe expansion slots, 14 slots of which support PCIe 5.0
GPU Card	4 x dual-width or 14 x single-width GPU cards
Fan Module	4 x hot-swappable counter-rotating fans in N+1 redundancy
Power Supply	2 x hot-swappable PSUs in 1+1 redundancy mode. Supported options include: • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs 1000 W (input: 100 V to 127 V AC) 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC) • 3000 W AC Titanium PSUs 2500 W (input: 200 V to 220 V AC) 2900 W (input: 220 V to 230 V AC) 3000 W (input: 230 to 240 V AC) • 2000 W AC Platinum PSU 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC)
Management	The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening • The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management • It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management throughout the lifecycle
OS	FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler
Security	Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover opening detection
Operating Temperature	5ºC to 50ºC (41ºF to 122ºF), compliant with ASHRAE Classes A1, A2, A3, and A4
Certification	CE, UL, CCC, FCC, VCCI, and RoHS
Installation Suite	L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)	Chassis with 3.5ʺ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.) Chassis with 2.5ʺ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.)
