Product Details
Place of Origin: China
Brand Name: Inspur
Model Number: Inspur NF3120M5 Server
Payment & Shipping Terms
Minimum Order Quantity: 2 pieces
Price: $7,299.00 - $7,399.00/pieces
Packaging Details: box
Supply Ability: 10000 Piece/Pieces per Month
Private Mold: |
NO |
Products Status: |
Stock |
Type: |
Rack |
Processor Type: |
Intel Xeon |
Product Name: |
Inspur NF3120M5 Server |
Hard Drive: |
2T SATA*2 |
Memory: |
16GB |
Power Supply: |
400w |
CPU: |
E2224 |
Warranty: |
3 Years |
Port: |
Tianjin |
Private Mold: |
NO |
Products Status: |
Stock |
Type: |
Rack |
Processor Type: |
Intel Xeon |
Product Name: |
Inspur NF3120M5 Server |
Hard Drive: |
2T SATA*2 |
Memory: |
16GB |
Power Supply: |
400w |
CPU: |
E2224 |
Warranty: |
3 Years |
Port: |
Tianjin |

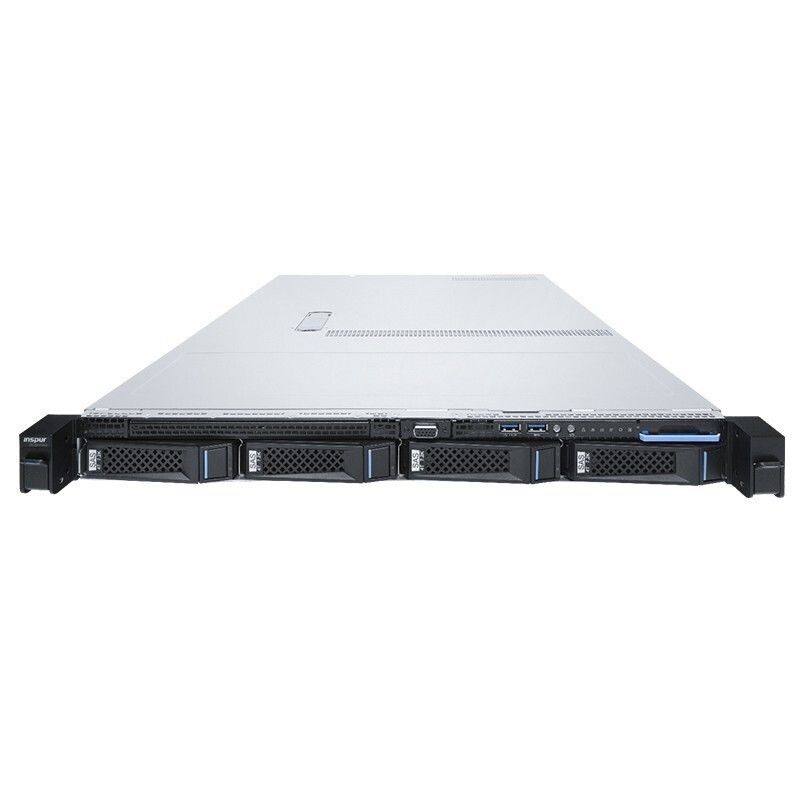

Inspur NF3120M5 4U Rackmount PC Server 2224 16G 2T SATA Rail
|
Component
|
Description
|
|
Form Factor
|
1U Rack
|
|
Processor
|
Supporting one Intel® Xeon® E product family processor
Processor Core: up to 8 cores(freq. 4.0GHz) TDP: up to 95W |
|
Chipset
|
Intel C242/C246
|
|
Memory
|
Up to 4 x DDR4 2666 MT/s memory
Supporting UDIMM, up to 128GB (32GB per DIMM) |
|
Storage
|
Hot-swappable: up to 4 x 3.5-inch/ 2.5-inch SATA/SAS hard drives
Non-hot-swappable: up to 4 x 3.5-inch/ 2.5-inch SATA/SAS hard drives Supporting built-in 1 x SATA/PCIe M.2 SSD hard drive |
|
Storage Controller
|
Onboard SATA controller, supporting RAID 0/1
Standard PCIe RAID controller supporting RAID 0/1/5/6/10 |
|
Network
|
Supporting 2 x GbE network ports
Supporting NCSI function |
|
I/O Scalable Slot
|
Supporting up to 2 x PCIe 3.0 slots
Redundancy PSU configuration: 2 x PCIe Gen3 x8 HHHL slots Fixed PSU configuration: 1 x PCIe Gen3 x8 FHHL slot + 1 x PCIe Gen3 x8 HHHL slot |
|
Interface
|
Front: 1 x USB2.0, 1 x USB3.0, 1 x VGA,
Rear: 4 x USB3.0, 1 x VGA, 2 x display ports, 1 x GbE management port, 1 x COM port, 1 x serial port |
|
System Fan
|
4 x 4028 series hot-swappable fans
|
|
PSU
|
Supporting 1 x 400W FLEX PSU
Supporting 2 x 550W PSUs (Gold), 1+1 redundancy |
|
System Management
|
Supporting remote management control, IPMI 2.0, KVM over IP, SOL, SNMP, etc.
Supporting single rear RJ45 dedicated IPMI management port |
|
OS
|
Supporting Microsoft Windows Server/Red Hat Enterprise Linux/SUSE Linux
Enterprise Server/ Ubuntu Server/ Citrix Xen Server/ VMWare ESXi |
|
Dimension
|
438mm (W) x 43.2mm (H) x 551 mm (D)
17.24 inch (W) x 1.70 inch (H) x 21.69 inch (D) |
|
Weight
|
Full configuration: 20kg
(including server + package + rail kit + components box) |
|
Working Temperature
|
5℃-35℃
41℉-95℉ |
