Home > products > Inspur GPU Server > High performance Inspur NF5270M5 Intel Xeon processor 32GB memory 2U server rack server

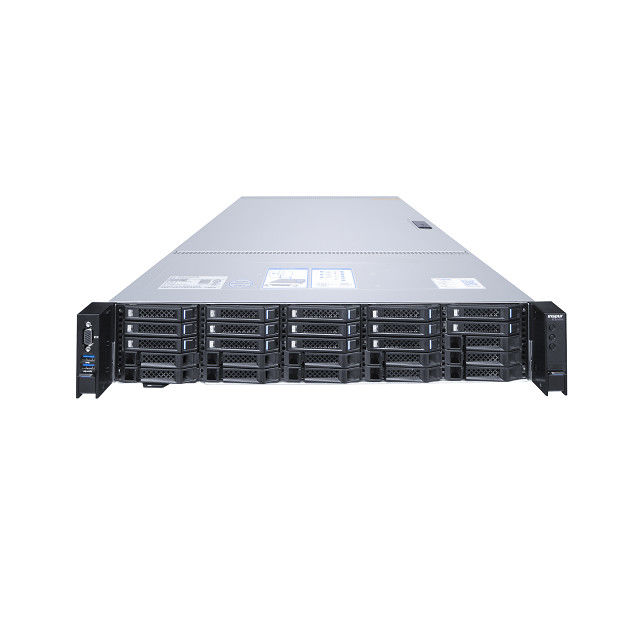

High performance Inspur NF5270M5 Intel Xeon processor 32GB memory 2U server rack server

Product Details

Place of Origin: China

Model Number: Inspur NF5270M5

Payment & Shipping Terms

Price: $1,500.00/pieces >=1 pieces

Packaging Details: BOX

Supply Ability: 1000 Piece/Pieces per Month

Get Best Price
Highlight:
Products Status:
Stock, Stock
Type:
Rack
Processor Type:
Intel Xeon
Processor:
Intel Xeon Scalable Processors
Processor Speed:
3.6GHz
Memory:
32GB
Form Factor:
2U Rackmount
Chipset:
Intel C621 Series
Power:
550W
Dimension:
447mm (W)* 87mm (H) *720mm(D)
Port:
Tianjin
Products Status:
Stock, Stock
Type:
Rack
Processor Type:
Intel Xeon
Processor:
Intel Xeon Scalable Processors
Processor Speed:
3.6GHz
Memory:
32GB
Form Factor:
2U Rackmount
Chipset:
Intel C621 Series
Power:
550W
Dimension:
447mm (W)* 87mm (H) *720mm(D)
Port:
Tianjin
High performance Inspur NF5270M5 Intel Xeon processor 32GB memory 2U server rack server
Product Description



The NF5270M5 supports the latest Intel® Xeon® scalable processor. Each processor supports up to 26 cores, 52 threads, and a maximum TDP of 150W.

Configurable to a maximum of 16* DDR4-2933 DIMMs for a total of 1 TB. The NF5270M5 also supports RDIMM, LDRIMM, ECC, memory imaging, and hot standby.

Supports up to 4 128 Gb OptaneTM PMems. The 4 hot swappable NVMe SSD hard drives are fully configurable and provide a ten-fold input/output operations per second (IOPS) increase compared to SATA SSDs for high-end enterprise applications, providing increased storage bandwidth.





Specification



Inspur NF5270M5

Component

Description

Specifications

2U rackmount

Processor

Supports single and dual Intel® Xeon® series scalable processors:  supports up to 26 cores at a frequency of 2.0 GHz; maximum 3.6 GHz (8 cores);
2 UPI interconnected chains with maximum speed of 10.4 GT/s per chain

Chipset

Intel C621 series

Memory

Supports up to 16 DDR4 2400/2666/2933 MT/s DIMMs; each CPU supports
8 DIMMs, supports RDIMM/LRDIMM/OptaneTM PMems; supports up to 1 TB
(64 GB per DIMM); supports up to 128 GB per Optane™ Pmems

Storage

Each front node supports up to 12*3.5" hard drives or 25*2.5"hard drives;
Each rear node supports up to 2*2.5" hard drives or 2 SATA M.2 SSDs
(The maximum number of supported hard drives is configuration-specific)

Storage
Controller

SATA controller on motherboard, supports RAID 0/1/5/10;
NVMe controller interface on motherboard configurable with Intel NVMe RAID key

Network port

1 Gb dual RJ45 network port on motherboard

I/O expansion
slot

Expands up to 4 standard PCIe x8 slots and 1 PCIe x16 slot; expands up to
2 standard PCIe x16 slots

Ports

Front: 1 USB2.0 port, 1 USB3.0 port, 1* VGA port, 1* UID indicator and button
Rear: 2 USB3.0 port, 1 VGA port, 1 1 Gb management port, 1UID indicator and button
Built-in: 2 USB3.0 port

Fan

4 centrally located cooling fans

Power supply

Supports 2* 550W/800W/1300W PSUs (platinum), 1+1 redundancy

System
management

The onboard BMC management module supports IPMI, SOL,
KVM Over IP, and virtual media, and provides 1 external 1 Gb RJ45 network port

Operating
system

Supports Windows/ Red Hat/ SUSE/ Centos/ Debian/ XenServer/ Oracle
Linux/ ESXi/ Ubuntu etc.

Size

447mm (W) x 87mm (H) x 720mm (D)

Weight

Less than 27 kg at full load, please refer to the technical white paper for
further details

Operating
temperature

5~35 (please refer to the technical white paper for more details)
