Product Details
Place of Origin: China
Brand Name: Inspur
Model Number: nf5280m6
Payment & Shipping Terms
Minimum Order Quantity: 2 pieces
Price: $10,000.00/pieces >=2 pieces
Packaging Details: box
Supply Ability: 10000 Piece/Pieces per Month
Products Status: |
Stock |
Type: |
Rack |
Processor Main Frequency: |
3.1G |
Processor Type: |
Xeon |
Product Name: |
Nf5280m6 Inspur |
CPU: |
4310*2 |
Memory Type: |
32G |
Hard Drive: |
480GB SSD SATA |
Warranty: |
3 Years |
Port: |
Tianjin |
Products Status: |
Stock |
Type: |
Rack |
Processor Main Frequency: |
3.1G |
Processor Type: |
Xeon |
Product Name: |
Nf5280m6 Inspur |
CPU: |
4310*2 |
Memory Type: |
32G |
Hard Drive: |
480GB SSD SATA |
Warranty: |
3 Years |
Port: |
Tianjin |

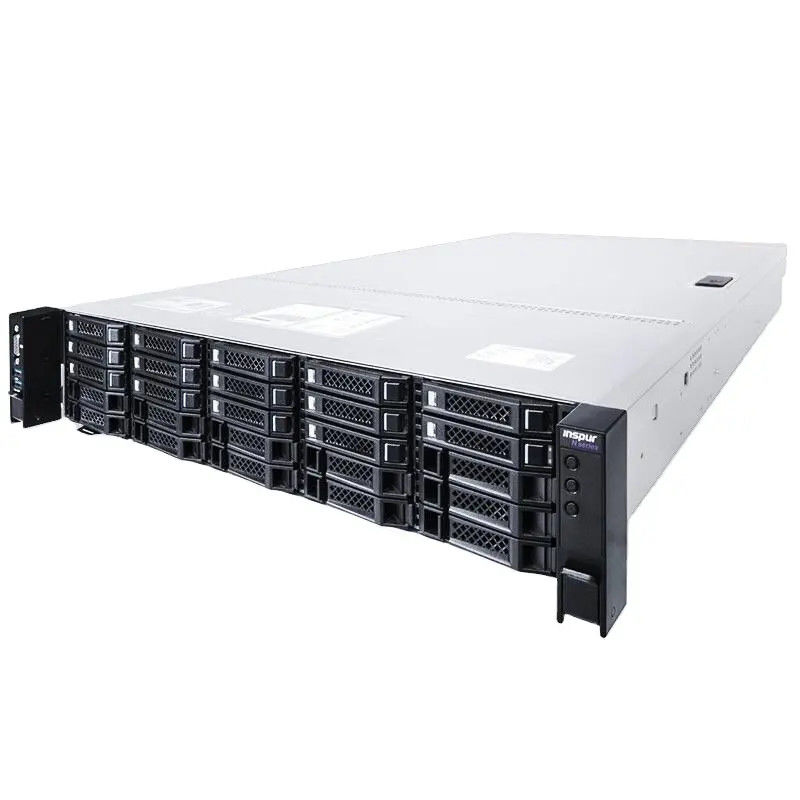

Custom Computer Inspur GPU Server NF5280M6 4310x2 480GB SSD SATA
Inspur NF5280M6 is a high-end 2U 2-socket rackmount server configured with the 3rd Gen Intel® Xeon® Scalable Processors. For different application scenarios, NF5280M6 maintains the consistent high-quality and reliability of Inspur servers. The product meets the application configuration requirements of various industries with high computing performance, complete ecological compatibility, and flexible configuration, and is suitable for various application scenarios such as data analysis and processing, deep learning, and distributed storage etc.
item
|
value
|
Products Status
|
Stock
|
Type
|
Rack
|
Processor Main Frequency
|
3.1G
|
Processor Type
|
Xeon
|
Brand Name
|
Inspur
|
Model Number
|
nf5280m6
|
Place of Origin
|
China
|
Product Name
|
nf5280m6 Inspur
|
CPU
|
4310*2
|
Memory type
|
32G
|
Hard Drive
|
480GB SSD SATA
|
Warranty
|
3 Years
|
Form Factor
|
2U Rack
|
Processor
|
Supporting 1/2 * 3rd Generation Gen Intel® Xeon® Scalable
Processors Max. processor core: up to 40 cores (freq. 2.3GHz) Max. processor frequency: 3.6GHz (4 cores) 3 * UPIs and each supports 11.2GT/s TDP: up to 270W |
Chipset
|
Intel® C621A
|
Memory
|
Up to 32 * DIMMs (8 channels /CPU, each channel supports 2 DIMMs):
Each CPU supports up to 16 * DIMMs, dual CPU supports 32 * DIMMs (up to 3200MT) Supporting RDIMM and BPS Memory Protection Schemes: ECC; Memory Mirroring; Memory-Level Protection |
Storage
|
Front:
25 * 2.5-inch SATA/SAS SSDs (hot swappable) 24 * 2.5-inch SATA/SAS/NVMe SSDs (hot swappable) 12 * 2.5-inch/3.5-inch SATA/SAS/NVMe SSDs (hot swappable) |
Rear:
4 * 2.5-inch SATA/SAS/NVMe SSDs (hot swappable) 4 * 3.5-inch SATA/SAS SSDs (hot swappable) 10 * 2.5-inch SATA/SAS SSDs (hot swappable) (Optional) 2 * SATA M.2 or E1.S |
|
Internal:
4 * 3.5-inch SATA/SAS SSDs max. 2 * TF cards (1 * BIOS; 1 * BMC) |
|
Storage Controller
|
RAID controller, SAS controller
Onboard PCH supports 14 * SATA interfaces. Onboard Intel® NVMe controller, NVMe RAID Key (optional) |
Network
|
1 * OCP3.0 (optional), 10/25/40/100/200G
2 * Onboard 10G Ethernet ports Standard NICs: 1/10/25/40/100G |
l/O Scalable Slot
|
Up to 11 * PCIe slots
4 * DW GPUs or 8 * SW GPUs 1 * OCP3.0 x16 NIC 1 * RAID Mezz card |
Interface
|
2 * Rear USB3.0, 1 * Front USB3.0, 1 * Front USB2.0, 1 * Front VGA, 1 * Rear VGA
Interface |
System Fan
|
4 * Hot-swappable N+1 redundancy fans
|
PSU
|
Supporting 2 * 550W/800W/1300W/1600W/2000W CRPS PSU, 1+1 redundancy
|
System Management
|
1 * Onboard independent 1000Mbps serial port for IPMI remote management
|
OS
|
Microsoft Windows Sever, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, etc.
|
Dimension(WxHx D)
|
478.8mm x 87mm x 811.7mm (with mount ears)
435mm x 87mm x 780mm (without mount ears) |
Weight
|
<37.5kg at highest conguration.
Please refer to the Technical White Paper for detail. |
Working Temperature
|
5℃~45℃.
Please refer to the Technical White Paper for detail. |
