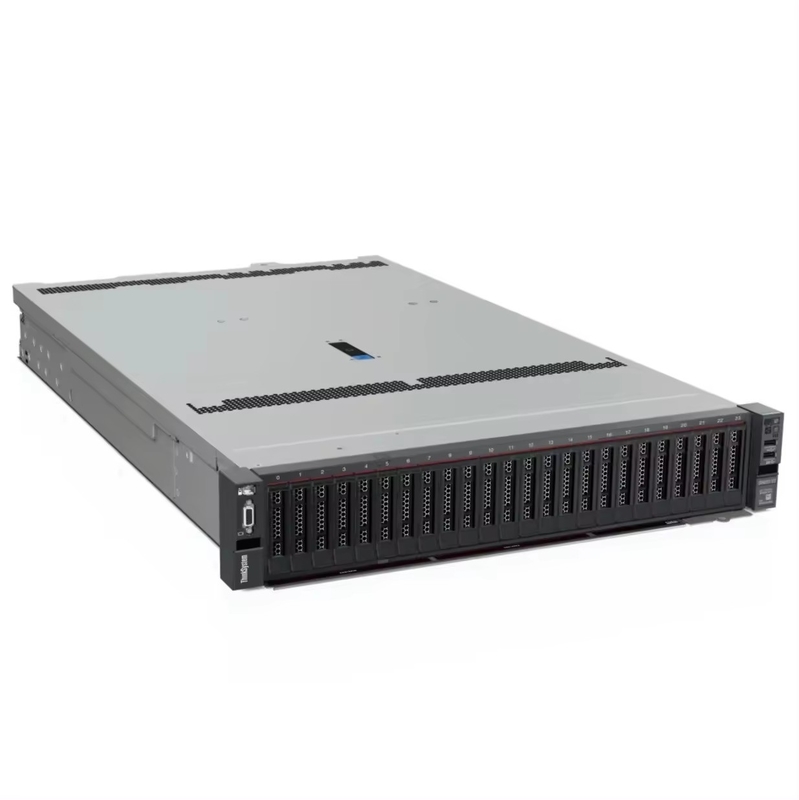

Lenovo ThinkSystem SR655 V3 2U Server with AMD EPYC 9004 Genoa Processor

Name: Lenovo ThinkSystem SR655 V3 2U Server with AMD EPYC 9004 Genoa Processor
Brand: Beijing Guangtian Runze Technology Co., Ltd.
Price: 495.00 USD
Availability: InStock

Product Details

Payment & Shipping Terms

Minimum Order Quantity: 2 pieces

Price: CN¥19,971.56/pieces

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Lenovo ThinkSystem SR655 server, AMD EPYC 9004 Genoa server, Lenovo 2U GPU server


Private Mold:	NO	Products Status:	Stock
Type:	Rack	Processor Main Frequency:	2.8GHz
Processor Type:	Intel Xeon	Brand Name:	Le-novo
Model Number:	SR655V3	Place Of Origin:	Beijing, China
Model NO.:	SR655 V3	Form Factor:	2U Rack Server
Processor:	1x 4th Gen AMD EPYC Processor	Memory:	Up To 1.5TB
Internal Storage:	20x 3.5" SAS/SATA/NVMe	RAID:	8-port And 16-port RAID Adapters With Up To 8GB Flash
Networking:	OCP 3.0 Slot With PCIe Gen4 X16 Interface (rear Or Front Of Server)	PCIe:	Supports PCIe 5.0
Power:	750W, 1100W, 1800W AC Platinum/Titanium Hot Plug PSU	Management And Security:	Integrated XClarity Controller 2

Private Mold:	NO
Products Status:	Stock
Type:	Rack
Processor Main Frequency:	2.8GHz
Processor Type:	Intel Xeon
Brand Name:	Le-novo
Model Number:	SR655V3
Place Of Origin:	Beijing, China
Model NO.:	SR655 V3
Form Factor:	2U Rack Server
Processor:	1x 4th Gen AMD EPYC Processor
Memory:	Up To 1.5TB
Internal Storage:	20x 3.5" SAS/SATA/NVMe
RAID:	8-port And 16-port RAID Adapters With Up To 8GB Flash
Networking:	OCP 3.0 Slot With PCIe Gen4 X16 Interface (rear Or Front Of Server)
PCIe:	Supports PCIe 5.0
Power:	750W, 1100W, 1800W AC Platinum/Titanium Hot Plug PSU
Management And Security:	Integrated XClarity Controller 2

Lenovo ThinkSystem SR655 V3 2U Server with AMD EPYC 9004 Genoa Processor

Product Description

Specification

Components	Specification
Machine types	7D9F - 1 year warranty 7D9E - 3 year warranty
Form factor	2U rack.
Processor	One AMD EPYC 9004 Series processor (formerly codenamed "Genoa"). Supported processors up to 128 cores, core speeds of up to 4.1 GHz, and TDP ratings of up to 360W. Supports PCIe 5.0 for high performance I/O.
Memory	12 DIMM slots. The processor has 12 memory channels, with 1 DIMM per channel (DPC). Lenovo TruDDR5 RDIMMs, 3DS RDIMMs, and 9x4 RDIMMs are supported, up to 4800 MHz
Memory maximum	Up to 3TB with 12x 256GB 3DS RDIMMs
Memory protection	ECC, SDDC, Patrol/Demand Scrubbing, Bounded Fault, DRAM Address Command Parity with Replay, DRAM Uncorrected ECC Error Retry, On-die ECC, ECC Error Check and Scrub (ECS), Post Package Repair
Disk drive bays	Up to 20x 3.5-inch or 40x 2.5-inch hot-swap drive bays: * Front bays can be 3.5-inch (8 or 12 bays) or 2.5-inch (8, 16 or 24 bays) * Middle bays can be 3.5-inch (4 bays) or 2.5-inch (8 bays) * Rear bays can be 3.5-inch (2 or 4 bays) or 2.5-inch (4 or 8 bays) * Combinations of SAS/SATA, NVMe, or AnyBay (supporting SAS, SATA or NVMe) are available The server also supports these drives for OS boot or drive storage: * Two 7mm drives at the rear of the server (optional RAID) * Internal M.2 module supporting up to two M.2 drives (optional RAID) See Storage configurations for details.
Maximum internal storage	* 2.5-inch drives: * 1228.8TB using 40x 30.72TB 2.5-inch SAS/SATA SSDs * 983.04TB using 32x 30.72TB 2.5-inch NVMe SSDs * 96TB using 40x 2.4TB 2.5-inch HDDs * 3.5-inch drives: * 440TB using 20x 22TB 3.5-inch HDDs * 307.2TB using 20x 15.36TB 3.5-inch SAS/SATA SSDs * 153.6TB using 12x 12.8TB 3.5-inch NVMe SSDs
Storage controller	* Up to 16x Onboard SATA ports (non-RAID) * Up to 12x Onboard NVMe ports (non-RAID) * NVMe Retimer Adapter (PCIe 4.0 or PCIe 5.0) * NVMe Switch Adapter (PCIe 4.0) * 12 Gb SAS/SATA RAID adapters * 8, 16 or 32 ports * Up to 8GB flash-backed cache * PCIe 4.0 or PCIe 3.0 host interface * 12 Gb SAS/SATA HBA (non-RAID) * 8-port and 16-port * PCIe 4.0 or PCIe 3.0 host interface
Network interfaces	Dedicated OCP 3.0 SFF slot with PCIe 4.0 x16 host interface, either at the rear of the server (rear-accessible) or the front of the server (front-accessible). Supports a variety of 2-port and 4-port adapters with 1GbE, 10GbE and 25GbE network connectivity. One port can optionally be shared with the XClarity Controller 2 (XCC2) management processor for Wake-on-LAN and NC-SI support. Additional PCIe network adapters supported in PCIe slots.
PCI Expansion slots	Up to 10x total PCIe slots (either 10x rear, or 6x rear + 2x front), plus a slot dedicated to the OCP adapter (rear or front). 2.5-inch drive configurations also support an additional internal bay for a cabled RAID adapter or HBA. Rear: Up to 10x PCIe slots, plus a slot dedicated to the OCP adapter. Slots are either PCIe 5.0 or 4.0 depending on riser selection and rear drive bay selection. OCP slot is PCIe 4.0. Slots are configured using three riser cards. Riser 1 (slots 1-3) and Riser 2 (slots 4-6) are installed in slots in the system board, Riser 3 (slots 7-8) and Riser 4 (9-10) are cabled to ports on the system board. A variety of riser cards are available. See the I/O expansion for details. Front: The server supports slots at the front of the server (configurations with up to 16 drive bays), as an alternative to rear slots in Riser 3 (and Riser 4). Front slots are 2x PCIe x16 full-height half-length slots plus 1x OCP slot. OCP slot is PCIe 4.0. Internal: For 2.5-inch front drive configurations, the server supports the installation of a RAID adapter or HBA in a dedicated area that does not consume any of the PCIe slots.
Ports	Front: 1x USB 3.2 G1 (5 Gb/s) port, 1x USB 2.0 port (also for XCC local management), External diagnostics port, optional VGA port. Rear: 3x USB 3.2 G1 (5 Gb/s) ports, 1x VGA video port, 1x RJ-45 1GbE systems management port for XCC remote management. Optional 2nd XCC remote management port (installs in OCP slot). Optional DB-9 COM serial port (installs in slot 3). Internal: 1x USB 3.2 G1 (5 Gb/s) connector for operating system or license key purposes.
Power supply	Up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or 80 PLUS Titanium certification. 750 W, 1100 W, 1800 W, 2400 W, and 2600 W AC, supporting 220 V AC. 750 W and 1100 W options also support 110V input supply. In China only, all power supply options support 240 V DC. Also available is a 1100W power supply with a -48V DC input.
Dimensions	Width: 445 mm (17.5 in.), height: 87 mm (3.4 in.), depth: 766 mm (30.1 in.)
Weight	Maximum: 38.8 kg (85.5 lb)
