Product Details
Place of Origin: Beijing, China, China, Beijing
Brand Name: Huawei
Model Number: 2288H V5
Payment & Shipping Terms
Minimum Order Quantity: 2 pieces
Price: $1,299.00 - $4,399.00/pieces
Packaging Details: box
Supply Ability: 100 Piece/Pieces per Month
Products Status: |
Stock, Stocks |
Type: |
Rack |
Processor Main Frequency: |
2.10GHz, 2.1GHz |
Processor Type: |
Intel Xeon |
Processor: |
Intel Xeon Bronze/Silver/ Gold/Platinum Processors |
Memory: |
2666 /2933/3200MT/s RDIMMs/LRDIMMs |
Drive Bays: |
Chassis With Up To8/24/25 X 2.5'' SAS/SATA HDDs Or SSDs |
Product Name: |
2288H V5 Server |
Network Controller: |
4x 1GbE |
RAID: |
S R130/R430C-M 1G(LSI3108) SAS/SATA |
Power Supplies: |
900W /1500W /200W |
Products Status: |
Stock, Stocks |
Type: |
Rack |
Processor Main Frequency: |
2.10GHz, 2.1GHz |
Processor Type: |
Intel Xeon |
Processor: |
Intel Xeon Bronze/Silver/ Gold/Platinum Processors |
Memory: |
2666 /2933/3200MT/s RDIMMs/LRDIMMs |
Drive Bays: |
Chassis With Up To8/24/25 X 2.5'' SAS/SATA HDDs Or SSDs |
Product Name: |
2288H V5 Server |
Network Controller: |
4x 1GbE |
RAID: |
S R130/R430C-M 1G(LSI3108) SAS/SATA |
Power Supplies: |
900W /1500W /200W |

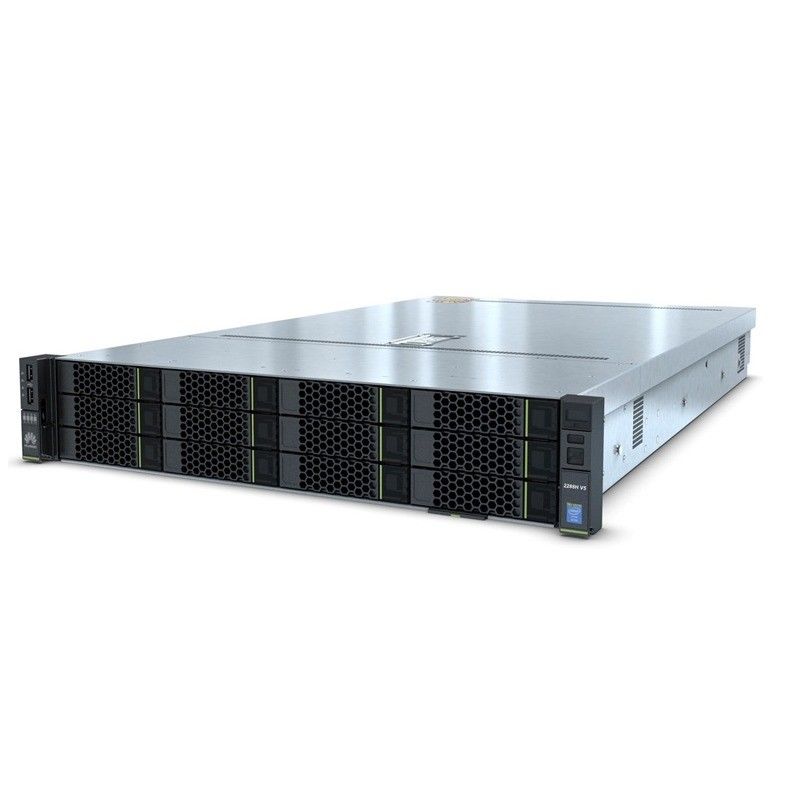

MODEL | HUAWEI 2288HV5 server |
Processor | 1/2 first generation Intel ® xeon ® Scalable processors 3100/4100/5100/6100/8100 series, up to 205W 1/2 Second generation Intel ® xeon ® Scalable processor 3200/4200/5200/6200/8200 series, up to 205W |
Memory | 24 DDR4 memory slots, up to 2933MT/s, up to 12 Intel ® Aoteng ™ Persistent memory 100 series, up to 2666MT/s |
Storage controllers | Optional configuration supports RAID0, 1, 10, 5, 50, 6, 60, etc. Optional configuration includes Cache super capacitor protection, RAID level migration, disk roaming, self diagnosis, Web remote Program setting and other functions |
Drive Bay | Various hard disk configurations are supported, and the hard disk supports hot plug: • 10 2.5 inch SAS/SATA/SSD hard disks can be configured (6~8 NVMe SSD hard disks and 2~4 SAS/SATA hard disks, total hard disks ≤ 10) • 10 2.5 inch SAS/SATA/SSD hard disks can be configured (2~4 NVMe SSD hard disks and 6~8 SAS/SATA hard disks, total hard disks ≤ 10) • Configurable with 10 2.5 inch SAS/SATA hard disks • Configurable with 8 2.5 inch SAS/SATA/SSD hard disks • Four 3.5-inch SAS/SATA/SSD hard disks can be configured Support Flash storage: • Double M 2 SSDs |
Power Supply | 550W,900W,1500W |
Sizing | 12*3.5:84×436×748mm 8*2.5:84×447×708mm |
Outline specification | 1U rack server |
Ports/PCIE | Ports:Two 10GE interfaces and two GE interfacesPCIE: Up to five PCIe 3.0 expansion slots, including one dedicated PCIe expansion card for RAID card and one flexible LOM card different |
Supported operating systems | Support Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Citrix XenServer VMware ESXi |
Warranty | 3 years |
