Product Details
Place of Origin: China
Brand Name: Inspur
Model Number: Inspur NF5270M6 Server
Payment & Shipping Terms
Minimum Order Quantity: 2 pieces
Price: $1,799.00/pieces >=2 pieces
Packaging Details: box
Supply Ability: 10000 Piece/Pieces per Month
Private Mold: |
NO |
Products Status: |
Stock |
Type: |
Rack |
Processor Main Frequency: |
2.2GHz |
Processor Type: |
Intel Xeon |
Product Name: |
Inspur NF5270M6 Server |
Form Factor: |
2U Rackmount |
Memory: |
32G |
CPU: |
4210 |
Power Supply: |
550W |
Warranty: |
3 Years |
Port: |
Tianjin |
Private Mold: |
NO |
Products Status: |
Stock |
Type: |
Rack |
Processor Main Frequency: |
2.2GHz |
Processor Type: |
Intel Xeon |
Product Name: |
Inspur NF5270M6 Server |
Form Factor: |
2U Rackmount |
Memory: |
32G |
CPU: |
4210 |
Power Supply: |
550W |
Warranty: |
3 Years |
Port: |
Tianjin |

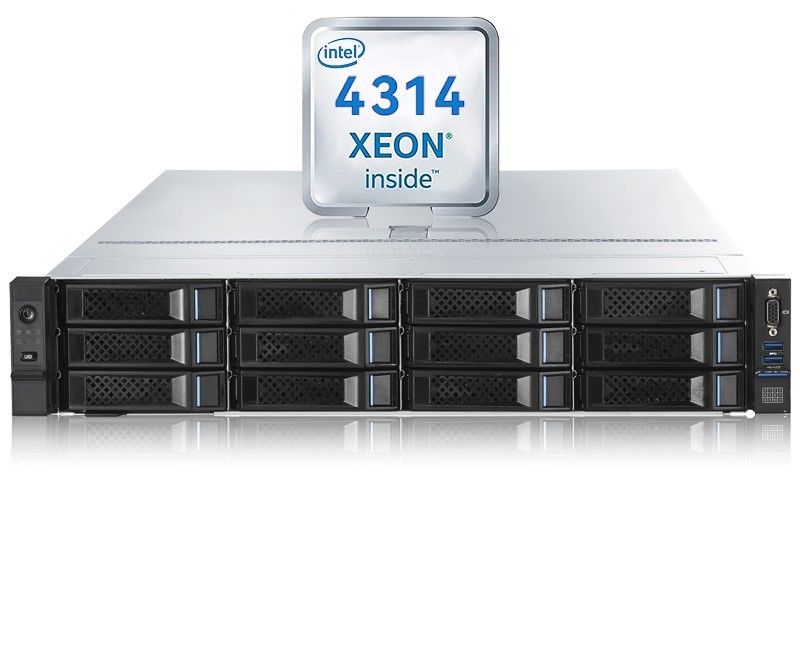

Intel Xeon 2U Rackmount Inspur GPU Server NF5270M6 32G Customized
|
Component
|
Description
|
|
Specifications
|
2U rackmount
|
|
Processor
|
Supports single and dual Intel® Xeon® series scalable processors: supports up to 26 cores at a frequency of 2.0 GHz; maximum 3.6
GHz (8 cores); 2 UPI interconnected chains with maximum speed of 10.4 GT/s per chain |
|
Chipset
|
Intel C621 series
|
|
Memory
|
Supports up to 16 DDR4 2400/2666/2933 MT/s DIMMs; each CPU supports 8 DIMMs, supports RDIMM/LRDIMM/OptaneTM PMems; supports up to
1 TB (64 GB per DIMM); supports up to 128 GB per Optane™ PMems |
|
Storage
|
Each front node supports up to 12*3.5" hard drives or 25*2.5"hard drives;
Each rear node supports up to 2*2.5" hard drives or 2 SATA M.2 SSDs (The maximum number of supported hard drives is configuration-specific) |
|
Storage
Controller |
SATA controller on motherboard, supports RAID 0/1/5/10;
NVMe controller interface on motherboard configurable with Intel NVMe RAID key |
|
Network port
|
1 Gb dual RJ45 network port on motherboard
|
|
I/O expansion slot
|
Expands up to 4 standard PCIe x8 slots and 1 PCIe x16 slot; expands up to 2 standard PCIe x16 slots
|
|
Ports
|
Front: 1 USB2.0 port, 1 USB3.0 port, 1* VGA port, 1* UID indicator and button
Rear: 2 USB3.0 port, 1 VGA port, 1 1 Gb management port, 1UID indicator and button Built-in: 2 USB3.0 port |
|
Fan
|
4 centrally located cooling fans
|
|
Power supply
|
Supports 2* 550W/800W/1300W PSUs (platinum), 1+1 redundancy
|
|
System
Management |
The onboard BMC management module supports IPMI, SOL,
KVM Over IP, and virtual media, and provides 1 external 1 Gb RJ45 network port |
|
Operating system
|
Supports Windows/ Red Hat/ SUSE/ Centos/ Debian/ XenServer/ Oracle Linux/ ESXi/ Ubuntu etc.
|
|
Size
|
447mm (W) x 87mm (H) x 720mm (D)
|
|
Weight
|
Less than 27 kg at full load, please refer to the technical white paper for further details
|
|
Operating temperature
|
5℃~35℃ (please refer to the technical white paper for more details)
|
|
Performance Data
|
SPEC official result: Link
|
