ODM Rackmount Inspur GPU Server NF8480M5 For Databases

Product Details

Place of Origin: China

Brand Name: Inspur

Model Number: Inspur NF8480M5 server

Payment & Shipping Terms

Minimum Order Quantity: 2 pieces

Price: $5,000.00 - $8,500.00/pieces

Packaging Details: BOX

Supply Ability: 1000 Piece/Pieces per Month

Get Best Price
High Light:

ODM Rackmount Inspur GPU Server

,

Databases Inspur GPU Server

,

Databases rackmount gpu server

Products Status:
Stock
Type:
Rack
Processor Main Frequency:
2.3GHz
Processor Type:
Gold 5218
Processor:
2*Gold 5218
Drive Bays:
12lff
Memory:
2*32gb
HDD:
1tb Sata Hdd
Power Supply:
2*800w
Port:
Tianjin
Products Status:
Stock
Type:
Rack
Processor Main Frequency:
2.3GHz
Processor Type:
Gold 5218
Processor:
2*Gold 5218
Drive Bays:
12lff
Memory:
2*32gb
HDD:
1tb Sata Hdd
Power Supply:
2*800w
Port:
Tianjin
ODM Rackmount Inspur GPU Server NF8480M5 For Databases
Product Description

Inspur NF8480M5 server

A highly scalable computing platform developed for key application workloads
The Inspur NF8480M5 is a high-end four-socket server built on the Intel® Xeon® scalable processor family. Its high computing capability, scalability, and excellent RAS features make it the ideal solution for in-memory databases, ERP, CRM, business intelligence analytical systems, large-scale virtualization applications, and data-intensive applications.
Optimized Computing Power
The NF8480M5 fully supports mesh interconnection for processors that signifificantly reduces internal communication latency. The processors adopt a fully direct connection architecture achieving direct processor communication. The NF8480M5 delivers 48* DDR4 DIMMs for massive internal
memory and scalability. With 50% higher memory scalability
and 25% higher bandwidth, system lag due to low frequency I/Os is signifificantly reduced. Up to 12 NVMe SSDs with a readability of up to 3.5 GB/s are also supported.
Flexible Scalability
The NF8480M5 supports hierarchical storage manage

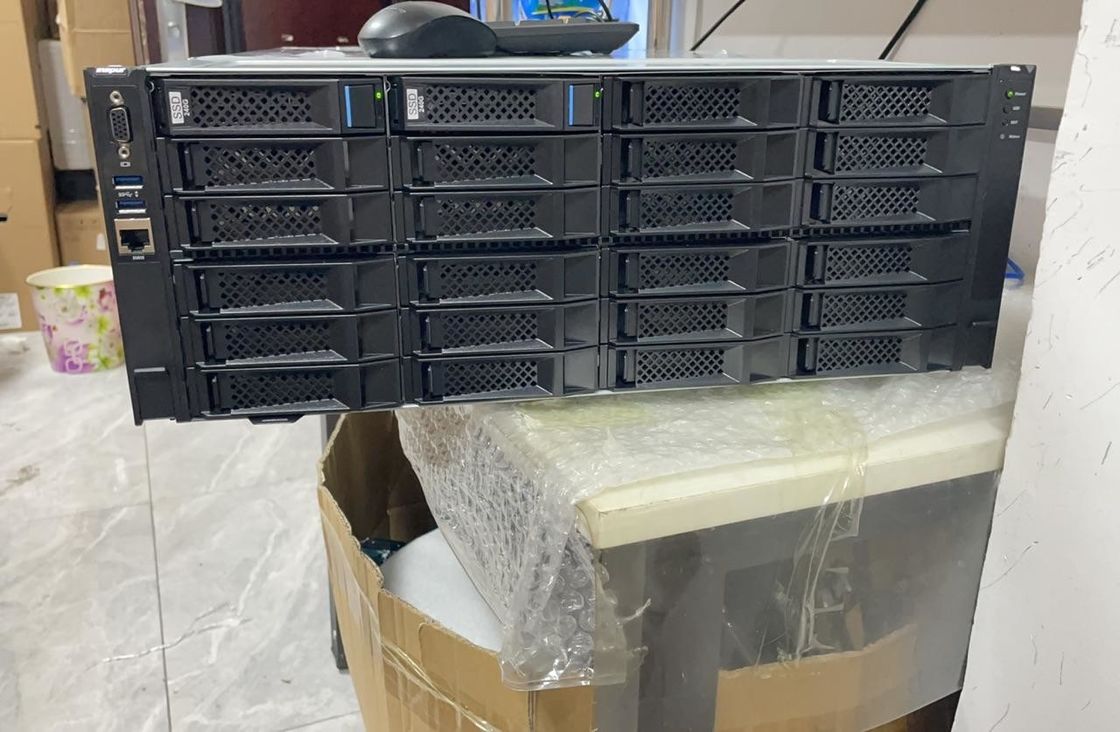

ment. The front chassis supports up to 24* 2.5"/3.5" hard drives, of which up to12* U.2 NVMe SSDs can be supported. The two built-in M.2 SSDs support tiered storage to to meet different needs. The server also supports 16* PCIe slots and 1 x OCP slot, as well as a PCIe bus. The simplicity of resource allocation increases an effortless user confifiguration between U.2 NVMe servers and the PCIe expansion
cards and meets any need.
Specififications
4U rack
Processor
Supporting 2 / 4*Intel® Xeon® scalable processors
Processor Core:s up to 28 cores (freq, 2.2 GHz)
Processor Frequency: up to 3.6 GHz (8 cores)
Two UPI interconnected links, the maximum transmission rate of single link is 10.4 GT/s
TCP: up to 205W
Memory
Supporting up to 48*DDR4 2933/2666 MT/s memory
Single CPU supports 8*DIMMs, dual CPU support 24*DIMMs.
Supporting RDIMM/LRDIMM/NCDIMM/OptaneTM PMem
Each RDIMM/LRDIMM supports up to 128 GB
Each OptaneTM PMem supports 512 GB
Storage
Supporting up to 24*2.5”/3.5” hard drives
Supporting up to 12*U.2 NVMe hard drives
Supporting up to 2*M.2 SSD hard drives
(The maximum quantity of supported hard drives is related to the specifific confifigurations)
Storage controller
Onboard SATA controller supporting RAID 0/1
Standard PCIe RAID controller supportingRAID 0/1/10/1E/5/6/10/50
Network
Supporting standard OCP card with NCSI function
Supporting 4*1 GB/10 GB network ports
Supporting NCSI function, Wake-on-LAN, network redundancy, load balancing, and other high-end features
I/O expansion slot
Supporting up to 16*standard PCIe3.0 slots
Ports
Front: 2*USB 3.0, 1*VGA, 1*RJ45 serial ports, liquid crystal diagnosis screen
Rear: 4*USB 3.0,1*VGA,1*dedicated network port; 1*BMC diagnostics serial port, 1*system serial port
Fans
8*8038 hot-swap N+1 redundant fans
Power
Supporting up to 4*550W/800W/1300W/1600W PSUs (platinum)
1+1/2+1/2+2/3+1 redundancies
