Product Details
Place of Origin: China
Brand Name: Lenovo

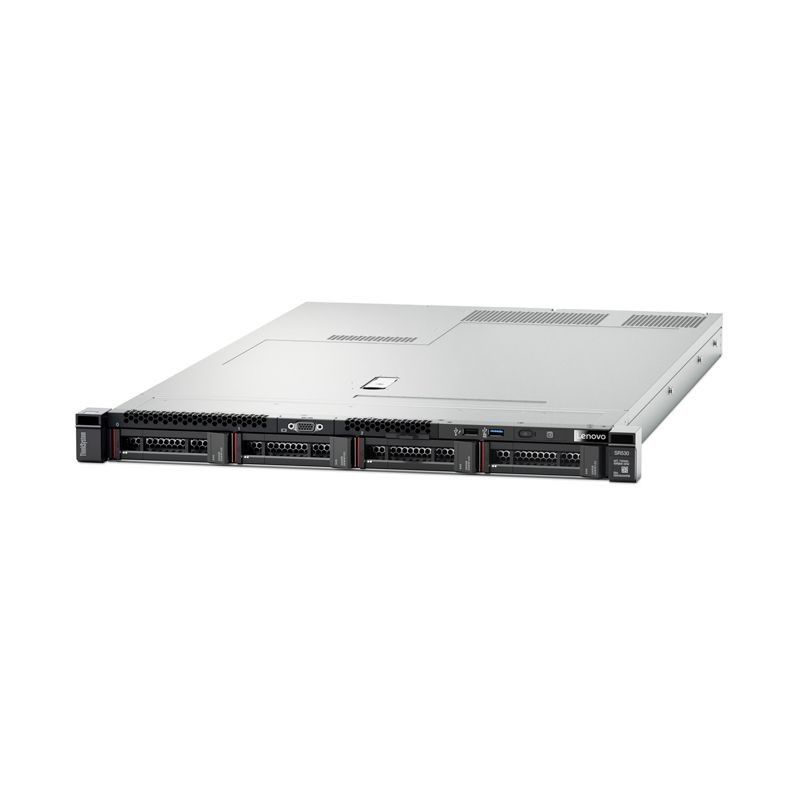

Model Number: ThinkSystem SR530 Rack Server
Payment & Shipping Terms
Minimum Order Quantity: 2 pieces
Price: $1,999.00/pieces >=2 pieces
Packaging Details: box
Supply Ability: 1000 Piece/Pieces per Month
Private Mold: |
NO |
Products Status: |
Stock |
Type: |
Rack |
Processor Main Frequency: |
1.9GHz |
Processor Type: |
Intel Xeon |
Product Name: |
ThinkSystem SR530 Rack Server |
Form Factor: |
1U Rack Server |
Memory: |
16G DIMMs |
Power: |
550W |
Warranty: |
3 Years |
Processor: |
Bronze 3204 |
Port: |
Tianjin |
Private Mold: |
NO |
Products Status: |
Stock |
Type: |
Rack |
Processor Main Frequency: |
1.9GHz |
Processor Type: |
Intel Xeon |
Product Name: |
ThinkSystem SR530 Rack Server |
Form Factor: |
1U Rack Server |
Memory: |
16G DIMMs |
Power: |
550W |
Warranty: |
3 Years |
Processor: |
Bronze 3204 |
Port: |
Tianjin |
Intel C622 SR530 Lenovo 4U Server Intel 3204 16GB 1U Rackmount
Lenovo SR530 Servers Specification
|
|
|
Form factor
|
1U rack-mount.
|
|
Processor
|
Up to two Intel Xeon Bronze, Silver, Gold, or Platinum processors:
Up to 20 cores (2.0 GHz core speeds) Up to 3.6 GHz core speeds (4 cores) Two UPI links up to 10.4 GT/s each Up to 27.5 MB cache Up to 2666 MHz memory speed |
|
Chipset
|
Intel C622.
|
|
Memory
|
Up to 12 DIMM sockets (6 DIMMs per processor; six memory channels per processor with one DIMM per channel). Support for RDIMMs and
LRDIMMs. Memory types cannot be intermixed. Memory speed up to 2666 MHz. |
|
Memory capacity
|
With RDIMMs: Up to 384 GB with 12x 32 GB RDIMMs and two processors.
With LRDIMMs: Up to 768 GB with 12x 64 GB LRDIMMs and two processors. |
|
Memory protection
|
Error correction code (ECC), SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs, requires Intel Xeon Gold or
Platinum processors), memory mirroring, memory rank sparing, patrol scrubbing, and demand scrubbing. |
|
Drive bays
|
4 LFF SATA Simple Swap drive bays
4 LFF SAS/SATA hot-swap drive bays 8 SFF SAS/SATA hot-swap drive bays |
|
Internal storage capacity
|
2.5-inch drives:
122.88TB using 8x 15.36TB 2.5-inch SAS/SATA SSDs 19.2TB using 8x 2.4TB 2.5-inch HDDs 3.5-inch drives: 72TB using 4x 18TB 3.5-inch HDDs 30.72TB using 4x 7.68TB 3.5-inch SAS/SATA SSDs |
|
Storage controller
|
6 Gbps SATA
Non-RAID: Onboard SATA AHCI RAID 0/1/10/5: Onboard SATA RAID (Intel RSTe) 12 Gbps SAS/6 Gbps SATA RAID RAID 0/1/10/5/50: RAID 530-8i RAID 730-8i 1GB Cache RAID 0/1/10/5/50/6/60: RAID 730-8i 2GB Flash RAID 930-8i 2GB Flash RAID 930-16i 4GB or 8GB Flash 12 Gbps SAS/6 Gbps SATA non-RAID: 430-8i HBA |
|
Optical drive bays
|
None. Support for an external USB DVD RW Optical Disk Drive
|
|
Network interfaces
|
2x Integrated 1 GbE RJ-45 ports (no 10/100 Mb support)
Onboard LOM slot for up to two additional 1/10 Gb Ethernet ports: 2x 1 GbE RJ-45 ports (no 10/100 Mb support) 2x 10 GbE RJ-45 ports (no 10/100 Mb support) 2x 10 GbE SFP+ ports (no 10/100 Mb support) Optional Mezzanine LOM (ML2) slot for dual-port 10 GbE cards with SFP+ or RJ-45 connectors. 1x RJ-45 10/100/1000 Mb Ethernet systems management port. |
|
I/O expansion slots
|
Up to three slots depending on the riser cards installed. The slots are as follows:
Slot 1: PCIe 3.0 x8; low profile Slot 2: PCIe 3.0 x16 or ML2 x8; low profile or full-height, half-length Slot 3: PCIe 3.0 x8 or x16; low profile PCIe x16 slot 3 requires the second processor to be installed. |
|
Ports
|
Front:
1x USB 2.0 port with XClarity Controller access. 1x USB 3.0 port. 1x VGA port (optional). Rear: 2x USB 3.0 ports and 1x VGA port. Optional 1x DB-9 serial port. |
|
Cooling
|
Four (one processor) or six (two processors) non-hot-swap system fans with N+1 redundancy.
|
|
Power supply
|
Up to two redundant hot-swap 550 W or 750 W (100 - 240 V) High Efficiency Platinum or 750 W (200 - 240 V) High Efficiency Titanium
AC power supplies. HVDC support (PRC only). |
|
Video
|
Matrox G200 with 16 MB memory integrated into the XClarity Controller. Maximum resolution is 1920x1200 at 60 Hz with 32 bits per
pixel. |
|
Hot-swap parts
|
Drives (select models) and power supplies.
|
|
Systems management
|
XClarity Controller (XCC) Standard, Advanced, or Enterprise (Pilot 4 chip), proactive platform alerts, XClarity Provisioning
Manager, XClarity Essentials, XClarity Administrator, XClarity Integrators for VMware vCenter and Microsoft System Center, XClarity Energy Manager, Capacity Planner. |
|
Security features
|
Power-on password, administrator's password, secure firmware updates, Trusted Platform Module (TPM) 1.2 or 2.0 (configurable UEFI
setting). Optional lockable front bezel. Optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in PRC). Optional Lenovo Business Vantage security software (available only in PRC). |
|
Operating systems
|
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi.
|
|
Warranty
|
One-year (7X07) or three-year (7X08) customer-replaceable unit (CRU) and onsite limited warranty with 9x5 Next Business Day Parts
Delivered. |
|
Service and support
|
Optional service upgrades are available through Lenovo Services: 2-hour or 4-hour response time, 6-hour or 24-hour committed
service repair, warranty extension up to 5 years, 1-year or 2-year post-warranty extensions, YourDrive Your Data, Enterprise Software Support, and Basic Hardware Installation Services. |
|
Dimensions
|
Width: 435 mm (17.1 in.), height: 43 mm (1.7 in.), depth: 750 mm (29.5 in.).
|
