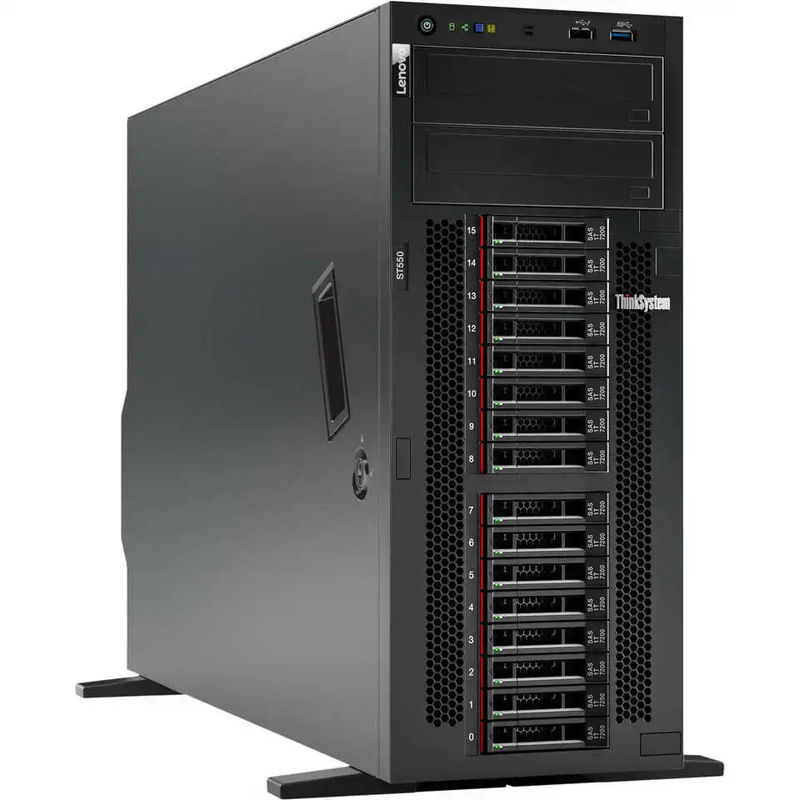

Len ovo ST558 Intel 3204/16GB DDR4/4x3.5 Hot plug bay/2*1GE/R530-8i/550W

Product Details

Place of Origin: China

Brand Name: Lenovo

Model Number: ThinkSystem ST558 Tower Serve

Payment & Shipping Terms

Minimum Order Quantity: 2 pieces

Price: $1,600.00 - $2,100.00/pieces

Packaging Details: box

Supply Ability: 1000 Piece/Pieces per Month

Get Best Price
Highlight:
Private Mold:
NO
Products Status:
Stock
Type:
Tower
Processor Main Frequency:
1.9GHZ
Processor Type:
Intel Xeon
Product Name:
ThinkSystem ST558 Tower Serve
Form Factor:
4U Rackable Tower
Processor:
1
Memory:
16GB DDR4
Expansion Slots:
Up To 6x PCIe 3.0 (with 2x Processors)
Warranty:
3 Years
Port:
Tianjin
Private Mold:
NO
Products Status:
Stock
Type:
Tower
Processor Main Frequency:
1.9GHZ
Processor Type:
Intel Xeon
Product Name:
ThinkSystem ST558 Tower Serve
Form Factor:
4U Rackable Tower
Processor:
1
Memory:
16GB DDR4
Expansion Slots:
Up To 6x PCIe 3.0 (with 2x Processors)
Warranty:
3 Years
Port:
Tianjin
Len ovo ST558 Intel 3204/16GB DDR4/4x3.5 Hot plug bay/2*1GE/R530-8i/550W
Product Description
Len ovo ST558 Intel 3204/16GB DDR4/4x3.5 Hot plug bay/2*1GE/R530-8i/550W 0
Len ovo ST558 Intel 3204/16GB DDR4/4x3.5 Hot plug bay/2*1GE/R530-8i/550W 1
Specification
Lenovo ST558 Servers Specification

Machine type
7X09 - 1 year warranty
7X10 - 3 year warranty
Form factor
Tower or 4U Rack.
Processor
One or two Intel Xeon Processor Scalable Family of processors, either Bronze, Silver, Gold or Platinum-level processors (formerly
codename "Skylake"). Supports processors up to 20 cores, core speeds up to 3.6 GHz, and TDP ratings up to 125W. Two Intel Ultra
Path Interconnect (UPI) links at 10.4 GT/s each.
Chipset
Intel C624 "Lewisburg" chipset
Memory
Up to 12 DIMM sockets (6 DIMMs per processor) supporting Lenovo TruDDR4 DIMMs at up to 2666 MHz. RDIMMs and LRDIMMs (Load Reduced
DIMMs) are supported, but memory types cannot be intermixed.
Memory maximums
With RDIMMs: Up to 384 GB with 12x 32 GB RDIMMs and two processors
With LRDIMMs: Up to 768 GB with 12x 64 GB LRDIMMs and two processors
Memory protection
ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs, requires Intel Xeon Gold or Platinum processors), memory
mirroring, and memory sparing.
Disk drive bays
Available configurations:
8, 16, or 20x 2.5-inch SAS/SATA hot-swap (optional support for NVMe drives)
4 or 8x 3.5-inch SAS/SATA hot-swap
Both 8x 3.5-inch + 4x 2.5-inch SAS/SATA hot-swap
4 or 8x 3.5-inch SATA simple-swap
Additional drive bays (except for 20-bay and hybrid configurations):
Two 5.25-inch drive bays for optical drives
Maximum internal storage
2.5-inch drives:
153.6TB using 20x 7.68TB 2.5-inch SAS/SATA SSDs
30.72TB using 4x 7.68TB 2.5-inch NVMe SSDs
48TB using 20x 2.4TB 2.5-inch HDDs
3.5-inch drives:
144TB using 8x 18TB 3.5-inch HDDs
61.44TB using 8x 7.68TB 3.5-inch SAS/SATA SSDs
Storage controller
Onboard 6 Gb SATA for simple-swap drive configurations, using embedded Intel RSTe software RAID, supporting RAID 0, 1, 10, 5, 50
12 Gb SAS/SATA RAID for hot-swap drive configurations:
RAID 530i (cacheless) supports RAID 0, 1, 10, 5, 50
RAID 730-8i with 1GB cache supports RAID 0, 1, 10, 5, 50
RAID 730-8i with 2GB flash-backed cache supports RAID 0, 1, 10, 5, 50, 6, 60
RAID 930-8i with 2GB flash-backed cache supports RAID 0, 1, 10, 5, 50, 6, 60
RAID 930-16i and 24i with 4GB flash-backed cache supports RAID 0, 1, 10, 5, 50, 6, 60
12 Gb SAS/SATA non-RAID: 430-8i and 430-16i HBAs
Optical drive bays
Two half-height 5.25-inch bays for optical or tape drives. Supports DVD-ROM or Multiburner. Hot-swap bays can be converted to 4x
2.5-inch hot-swap drive bays. (Not available with simple-swap drive configurations.)
Tape drive bays
Two half-height 5.25-inch bays for optical or tape drives. Support for one RDX drive or LTO tape drive.
Network interfaces
Two integrated Gigabit Ethernet 1000BASE-T ports (RJ-45) based on Intel X722 embedded controller (No 10/100 Mbps support)
PCI Expansion slots
Up to 7 PCIe slots: 6 general purpose PCIe 3.0 slots plus one slot reserved for the M.2 adapter. General purpose slots are as
follows:
Slot 1: PCIe 3.0 x8 (25W) FHHL
Slot 2: PCIe 3.0 x16 (75W); FHHL
Slot 3: PCIe 3.0 x16 (75W); FHFL
Slot 4: PCIe 3.0 x16 (x8 wired) (25W); FHFL (requires second processor)
Slot 5: PCIe 3.0 x16 (75W); FHFL (requires second processor)
Slot 6: PCIe 3.0 x8 (x4 wired) (25W); FHFL
Slots 3 and 5 support double-wide GPUs
Ports
Front: Two USB ports (one USB 3.0, one USB 2.0 port
Rear: Six USB ports (four USB 2.0, two USB 3.0), one VGA video, one RJ-45 systems management, two RJ-45 GbE network ports,
optional serial port.
Internal: One internal USB 3.0 port for RDX drive
Cooling
Supports ASHRAE A2 environments as well as A3/A4 with some limitations. Up to four simple-swap fans: two fans shipped standard on
single processor models and three fans shipped on dual processor models or models where there are drive bays in lieu of the
optical drive bays. The fourth rear-mounted fan is N+1 redundant, except for certain configurations.
Power supply
Up to two redundant hot-swap 550 W, 750 W or 1100 W High Efficiency Platinum AC power supplies, or 750 W High Efficiency Titanium
AC power supplies. Also available is a 450 W fixed (non-hot-swap) power supply. In China only, all hot-swap power supplies also
support 240V DC.
Hot-swap parts
Hard drives, power supplies, and fans
Systems management
Operator panel with status LEDs. XClarity Controller embedded management, XClarity Administrator centralized infrastructure
delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XClarity
Controller Advanced to enable remote control functions.
Security features
Power-on password, administrator's password, Trusted Platform Module (TPM), supporting TPM 1.2 or TPM 2.0. In China only, optional
Trusted Cryptographic Module (TCM). Kensington cable slot. Lockable side cover. Optional lockable front security door and chassis
intrusion switch (included with some models).
Video
G200 graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller. Maximum resolution is
1920x1200 32bpp at 60Hz.
Operating systems supported
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi.
Limited warranty
Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
Service and support
Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year
warranty extension, software support for Lenovo hardware and some third-party applications.
Dimensions
Width: 176 mm (6.9 in.), height: 438 mm (17.2 in.), depth: 660 mm (26 in.)
