Home > products > Lenovo GPU Server > Lenovo DE4000 Storage ThinkSystem DE4000H 2U24 SFF Hybrid Flash Array Rack Storage Server

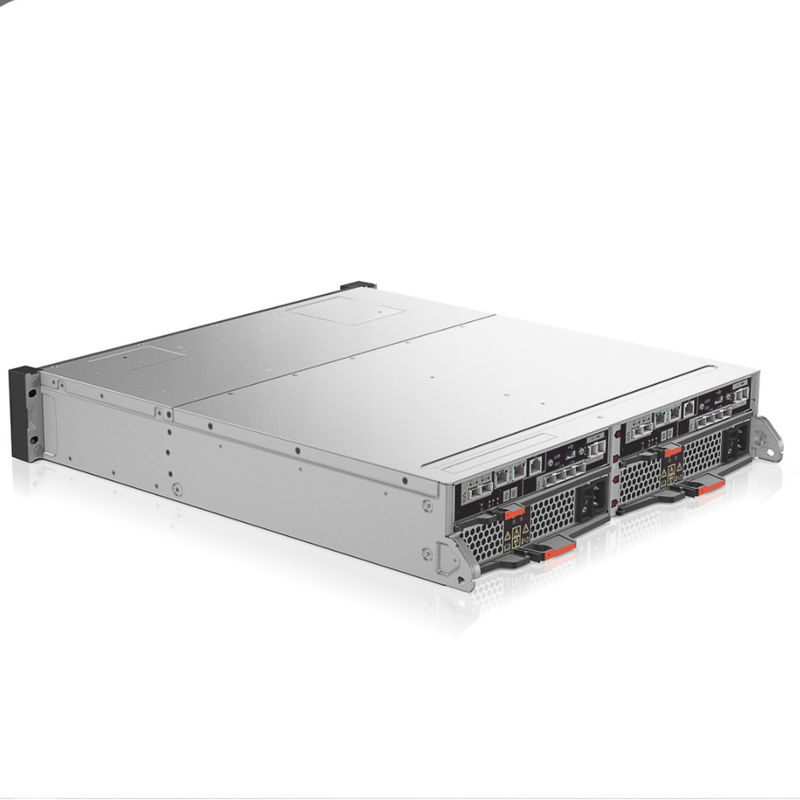

Lenovo DE4000 Storage ThinkSystem DE4000H 2U24 SFF Hybrid Flash Array Rack Storage Server

Product Details

Place of Origin: Beijing, China

Brand Name: Lenovo

Model Number: DE4000

Payment & Shipping Terms

Minimum Order Quantity: 2 pieces

Price: $1,000.00 - $20,000.00/pieces

Packaging Details: carton

Get Best Price
Highlight:
Products Status:
Stock
Type:
Rack
Processor Type:
/
Model::
DE4000H
Structure::
Rack Type
Memory:
4*16GB FC
Hard Disk:
4*1.8TB 2.5 Inches
Product Net Weight (kg)::
22kg
Number Of Internal Hard Drives::
24
Packing List::
Host X1; Random Information X1
Max Raw Capacity:
Up To 3.03PB
Hard Disk Speed::
10000 RPM
Weight:
22kg
Port:
Tianjin
Products Status:
Stock
Type:
Rack
Processor Type:
/
Model::
DE4000H
Structure::
Rack Type
Memory:
4*16GB FC
Hard Disk:
4*1.8TB 2.5 Inches
Product Net Weight (kg)::
22kg
Number Of Internal Hard Drives::
24
Packing List::
Host X1; Random Information X1
Max Raw Capacity:
Up To 3.03PB
Hard Disk Speed::
10000 RPM
Weight:
22kg
Port:
Tianjin
Lenovo DE4000 Storage ThinkSystem DE4000H 2U24 SFF Hybrid Flash Array Rack Storage Server

Model:
DE4000H
Structure:
rack type
Host:
small disk host/dual control
Memory
4*16GB FC
Hard disk
4*1.8TB 2.5 inches
Product net weight (kg):
22kg
Number of internal hard drives:
24
Packing list:
host x1; random information x1
Total hard disk capacity:
4T-8T
Power supply:
redundant
Hard Disk Speed:
10000 RPM
Form Factor
2U, 24 SFF drive bays (2U24)
Max Raw Capacity
Up to 3.03PB
Maximum Drives
Up to 192 HDDs / 120 SSDs
Maximum Expansion
* Up to 3 DE120S 2U12 LFF expansion units
* Up to 3 DE240S 2U24 SFF expansion units
* Up to 2 DE600S 4U60 LFF expansion units
Base I/O Port (Per System)
* 4 x 10Gb iSCSI (optical) * 4 x 16Gb FC
Optional I/O Port (Per System)
* 4 x 1 Gb iSCSI RJ-45
* 8 x 10Gb iSCSI (optical) or 16Gb FC
* 8 x 16/32Gb FC
* 8 x 10/25Gb iSCSI optical
* 8 x 12GB SAS
System Maximums
* Hosts: 256 * Volumes: 512
* Snapshot copies: 512 * Mirrors: 32
ThinkSystem DE series hybrid flash memory array adopts adaptive caching algorithm, which is specially designed for this. It is ideal for workloads such as high IOPS or bandwidth-intensive streaming applications, high-performance storage consolidation, etc.
The DE series hybrid storage subsystem requires only 2U rack space, and combines large capacity and ultra-high performance: high IOPS throughput, up to 21GBps read bandwidth and 9GBps write bandwidth. The DE series is designed to achieve 99.9999% availability through fully redundant I/O paths, advanced data protection features and extensive diagnostic functions.
It is also very secure, providing excellent data integrity to protect your mission-critical data and customers’ sensitive personalinformation.

Advanced data protection
With Dynamic Disk Pools (DDP) technology, there are no idle spares to manage, and you don’t need to reconfigure RAID when you expand your system. It distributes data parity information and spare capacity across a pool of drives to simplify the management of traditional RAID groups.

It also enhances data protection by enabling faster rebuilds after a drive failure. DDP dynamic-rebuild technology reduces the likelihood of another failure by using every drive in the pool for faster rebuilds.

The capability to dynamically rebalance data across all drives in the pool when drives are added or removed is one of the key features of DDP technology. A traditional RAID volume group is limited to a fixed number of drives. DDP, on the other hand, lets you add or remove multiple drives in a single operation.

ThinkSystem DE Series offers advanced enterprise-class data protection, both locally and over long distance, including:
* Snapshot / Volume copy * Asynchronous mirroring * Synchronous mirroring
Lenovo DE4000 Storage ThinkSystem DE4000H 2U24 SFF Hybrid Flash Array Rack Storage Server 0
Proven simplicity
Scaling is easy, due to the modular design of ThinkSystem DE Series and the simple management tools provided. You can start working with your data in less than 10 minutes.

Extensive configuration flexibility, custom performance tuning, and complete control over data placement enable administrators to
maximize performance and ease of use.

Multiple viewpoints provided by graphical performance tools supply the key information about storage I/O that administrators need
to further refine performance.
Performance and availability
The ThinkSystem DE Series Hybrid Flash Array with adaptive-caching algorithms was engineered for workloads ranging from high-IOPS
or bandwidth-intensive streaming applications to high-performance storage consolidation.
These systems are targeted at backup and recovery, high-performance computing markets, Big Data/analytics, and virtualization, yet they work equally well in general computing environments.
ThinkSystem DE Series is designed to achieve up to 99.9999% availability via fully redundant I/O paths, advanced data protection
features, and extensive diagnostic capabilities.
It’s also highly secure, with robust data integrity that protects your critical business data as well as your customers’ sensitive
personal information.
